• Model NO. DM136-T6WA50-LV
    Power Consumption 6W
    Lamp/Luminaire Cree
    Color Temperature & Ra 3000K,Ra≥90
    LED LUMEN(lm) 543lm(Without louver)
    350lm(With louver)

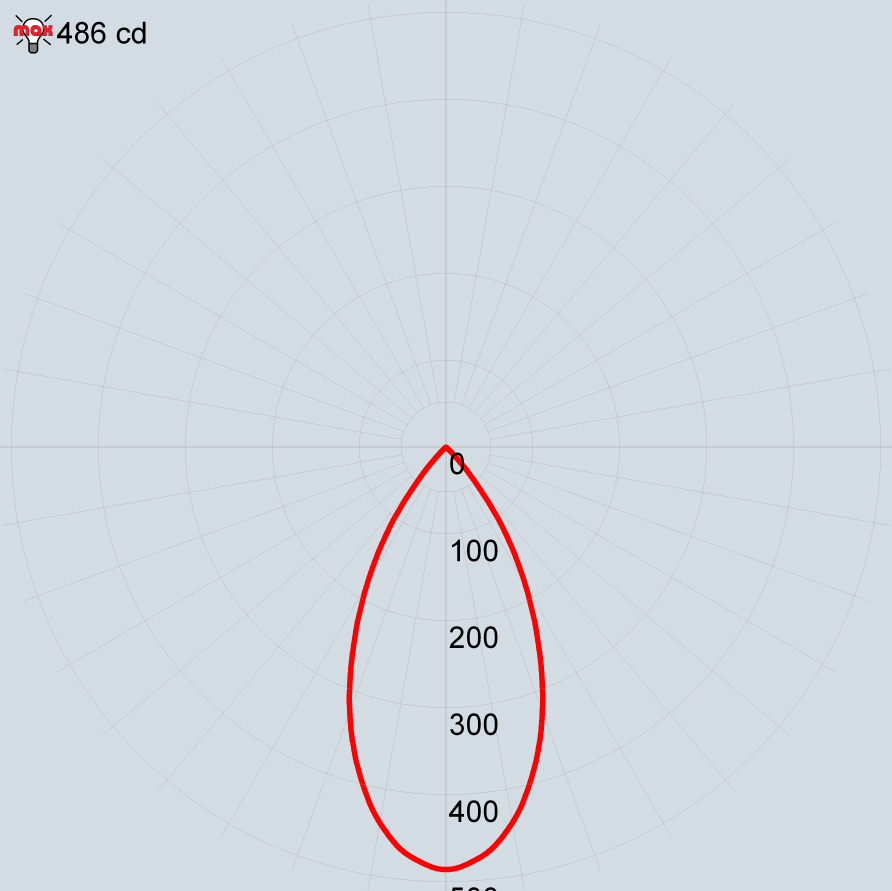

    Idensity(cd) 486cd
    Beam Angle（FWHM °） 51°
    Beam Angle（FA°） 81°
    Rotation Angle（°）  +30°~-15°
    MacAdam ≤5
    Material stainless steel+Aluminium
    Color/ Finishing Treatmen 316 stainless steel
    Dimension（L*W*Hmm） φ130*139mm
    Cutting Size（mm） φ111*139mm
    Voltage DC24V/AC220V
    Driver Internal
    Dimmable ONOFF/DALI/1-10v/DMX
    Degree of protection（IP&IK) IP67、IK10
    Installation Recessed
    Certificate CE
    Maximum Temperature   -40℃～50℃
    Product Salt Spray Test Duration ＞1000h
    Life time in hours 50000h
    Accessory anti-glare louvre
    Comment
