• Model NO. DM180-T15WA36-LV
    Power Consumption 15W
    Lamp/Luminaire Bridgelux
    Color Temperature & Ra 3000K,Ra≥90
    LED LUMEN(lm) 1406lm(Without louver)
    861lm(With louver)

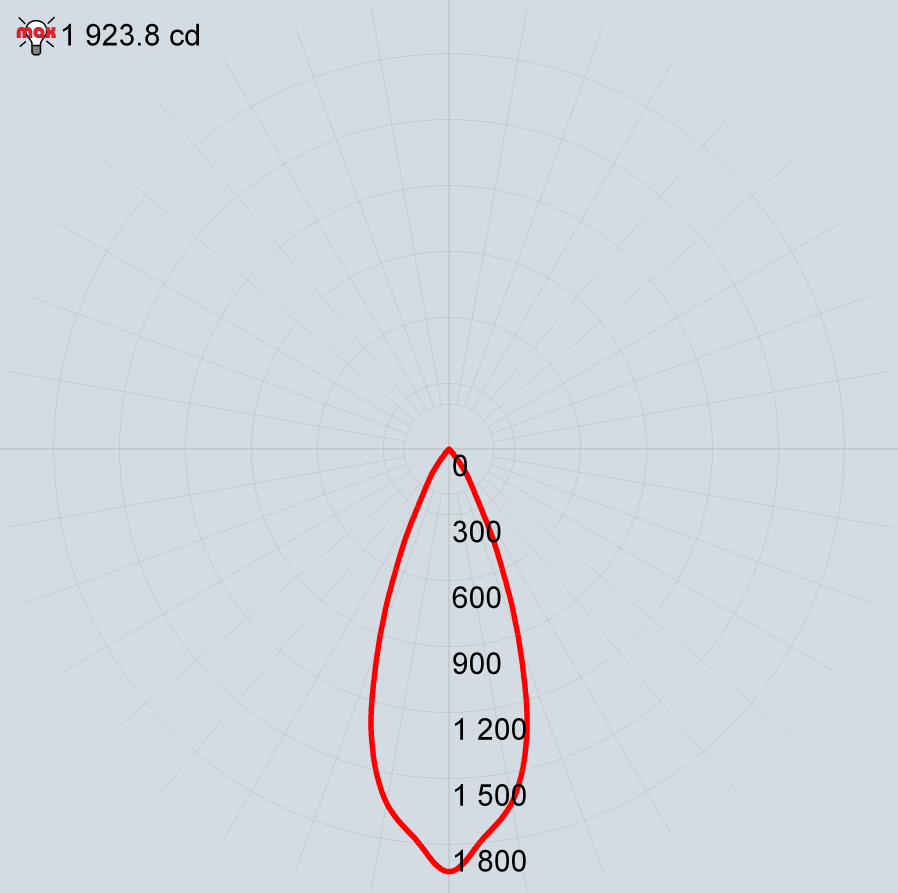

    Idensity(cd) 1923cd
    Beam Angle（FWHM °） 39°
    Beam Angle（FA°） 64°
    Rotation Angle（°）  +30°~-15°
    MacAdam ≤5
    Material stainless steel+Aluminium
    Color/ Finishing Treatmen 316 stainless steel
    Dimension（L*W*Hmm） φ181*163mm
    Cutting Size（mm） φ175*163mm
    Voltage DC24V/AC220V
    Driver Internal
    Dimmable ONOFF/DALI/1-10v/DMX
    Degree of protection（IP&IK) IP67、IK10
    Installation Recessed
    Certificate CE
    Maximum Temperature   -40℃～50℃
    Product Salt Spray Test Duration ＞1000h
    Life time in hours 50000h
    Accessory anti-glare louvre
