• Model NO. DM210-F36WA11Q21-LV
    Power Consumption 36W
    Lamp/Luminaire Bridgelux
    Color Temperature & Ra 3000K,Ra≥90
    LED LUMEN(lm) 3180lm(Without louver)
    1189lm(With louver)

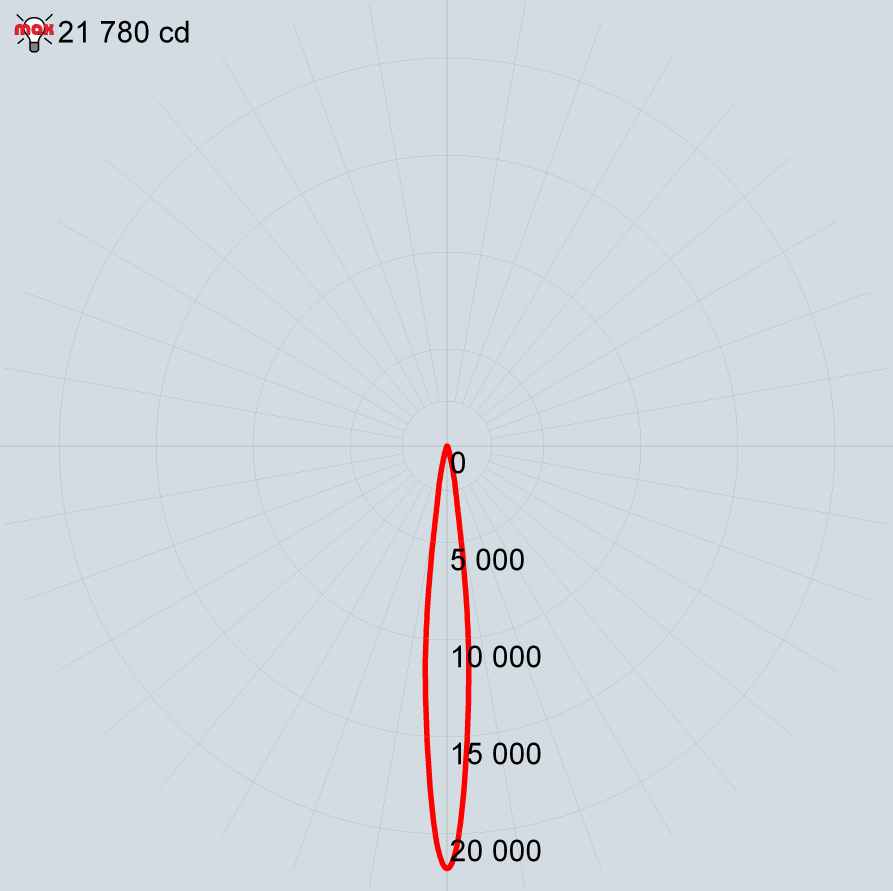

    Idensity(cd) 21780cd
    Beam Angle（FWHM °） 11°
    Beam Angle（FA°） 22°
    Rotation Angle（°） /
    MacAdam ≤5
    Material stainless steel+Aluminium
    Color/ Finishing Treatmen 316 stainless steel
    Dimension（L*W*Hmm） φ210*177mm
    Cutting Size（mm） φ197*177mm
    Voltage DC24V/AC220V
    Driver Internal
    Dimmable ONOFF/DALI/1-10v/DMX
    Degree of protection（IP&IK) IP67、IK10
    Installation Recessed
    Certificate CE
    Maximum Temperature   -40℃～50℃
    Product Salt Spray Test Duration ＞1000h
    Life time in hours 50000h
    Accessory anti-glare louvre
