• Model NO. DM320-F84WA30Q46-LV
    Power Consumption 84W
    Lamp/Luminaire Bridgelux
    Color Temperature & Ra 3000K,Ra≥90
    LED LUMEN(lm) 7197lm(Without louver)
    6068lm(With louver)

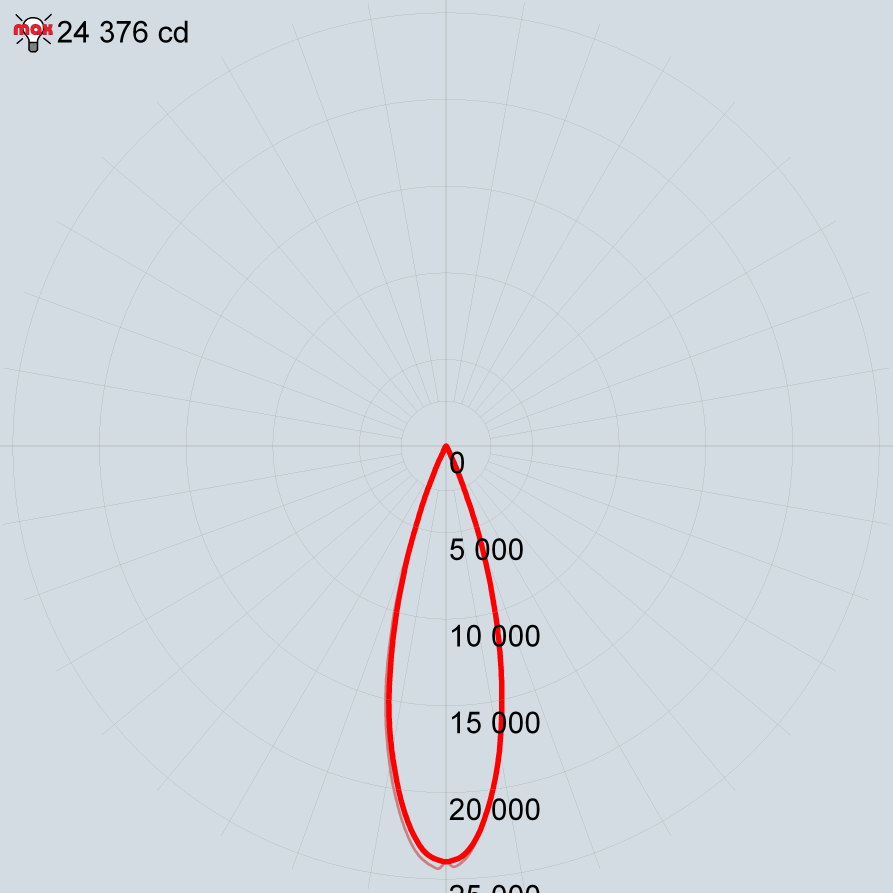

    Idensity(cd) 24376cd
    Beam Angle（FWHM °） 30°
    Beam Angle（FA°） 46°
    Rotation Angle（°） /
    MacAdam ≤5
    Material stainless steel+Aluminium
    Color/ Finishing Treatmen 316 stainless steel
    Dimension（L*W*Hmm） φ320*244mm
    Cutting Size（mm） φ301*244mm
    Voltage DC24V/AC220V
    Driver Internal
    Dimmable ONOFF/DALI/1-10v/DMX
    Degree of protection（IP&IK) 3000K,Ra≥90
    Installation Recessed
    Certificate CE
    Maximum Temperature   -40℃～50℃
    Product Salt Spray Test Duration ＞1000h
    Life time in hours 50000h
    Accessory anti-glare louvre
