• Model NO. DM59-6WA24-LV
    Power Consumption 6W
    Lamp/Luminaire Cree
    Color Temperature & Ra 3000K,Ra≥90
    LED LUMEN(lm) 563lm(Without louver)
    186lm(With louver)

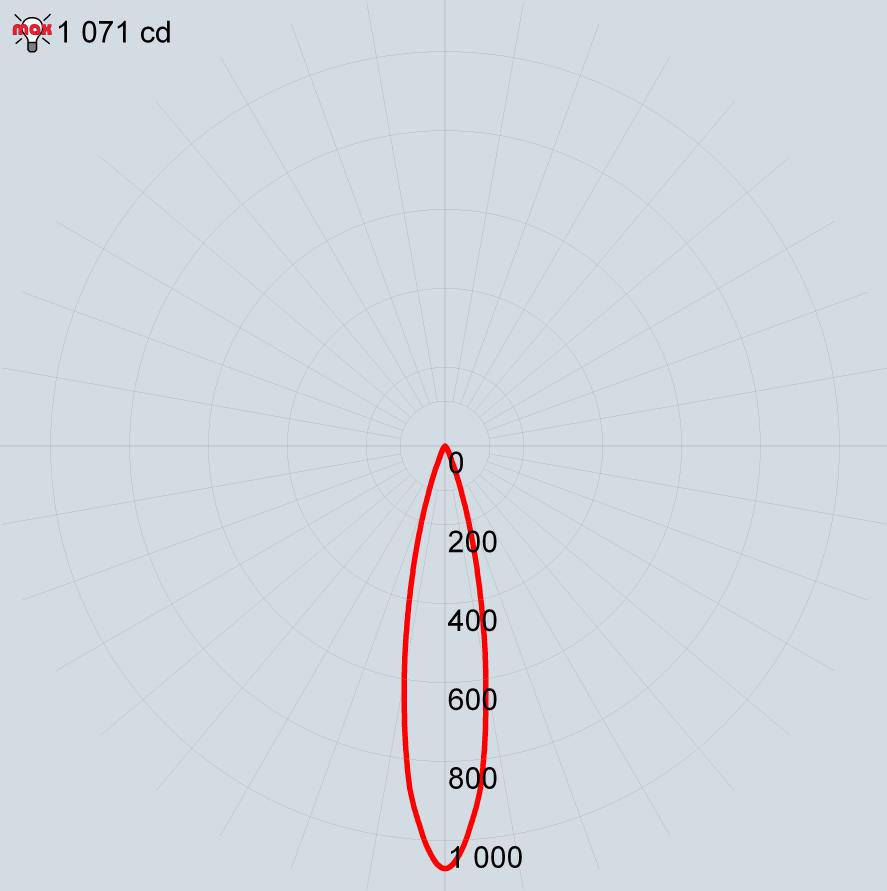

    Idensity(cd) 1071cd
    Beam Angle（FWHM °） 22°
    Beam Angle（FA°） 40°
    Rotation Angle（°） /
    MacAdam ≤5
    Material stainless steel+Aluminium
    Color/ Finishing Treatmen 316 stainless steel
    Dimension（L*W*Hmm） φ59*80mm
    Cutting Size（mm） φ54*110mm
    Voltage DC24V
    Driver Internal
    Dimmable ONOFF/DALI/1-10v/DMX
    Degree of protection（IP&IK) IP67、IK08
    Installation Recessed
    Certificate CE
    Maximum Temperature   -40℃～50℃
    Product Salt Spray Test Duration ＞1000h
    Life time in hours 50000h
    Accessory anti-glare louvre
    Comment Need to connect to DC24V power



  • Product datasheet

    Download ↓
    Installation  instructions Download ↓
    2D  Download ↓
    Quotation text / txt Download ↓
    Quotation text (neutral) / txt Download ↓



    Download documents
