• Model NO. DM69-CF4WA8Q16-LV
    Power Consumption 4W
    Lamp/Luminaire Bridgelux
    Color Temperature & Ra 3000K,Ra≥90
    LED LUMEN(lm) 232lm(Without louver)
    91lm(With louver)

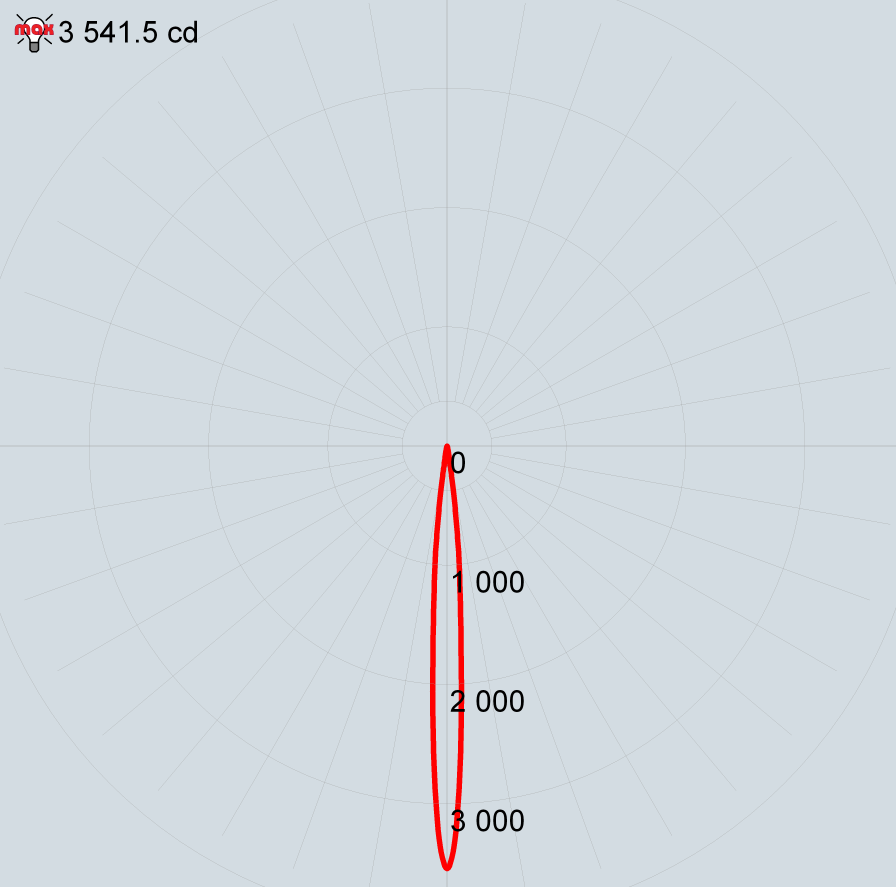

    Idensity(cd) 3541cd
    Beam Angle（FWHM °） 8°
    Beam Angle（FA°） 16°
    Rotation Angle（°） /
    MacAdam ≤5
    Material stainless steel+Aluminium
    Color/ Finishing Treatmen 316 stainless steel
    Dimension（L*W*Hmm） φ72*39mm
    Cutting Size（mm） φ68*40mm
    Voltage DC24V
    Driver Internal
    Dimmable ONOFF/DALI/1-10v/DMX
    Degree of protection（IP&IK) IP67、IK10
    Installation Recessed
    Certificate CE
    Maximum Temperature   -40℃～50℃
    Product Salt Spray Test Duration ＞1000h
    Life time in hours 50000h
    Accessory anti-glare louvre
    Comment Need to connect to DC24V power
