• Model NO. LBW75-45WA1560-P05-RGBW
    Power Consumption 45W/m
    Lamp/Luminaire Cree
    Color Temperature & Ra

    RGBW,Ra≥90
    LED LUMEN(lm) 2047lm（without louver）
    794lm（with louver）

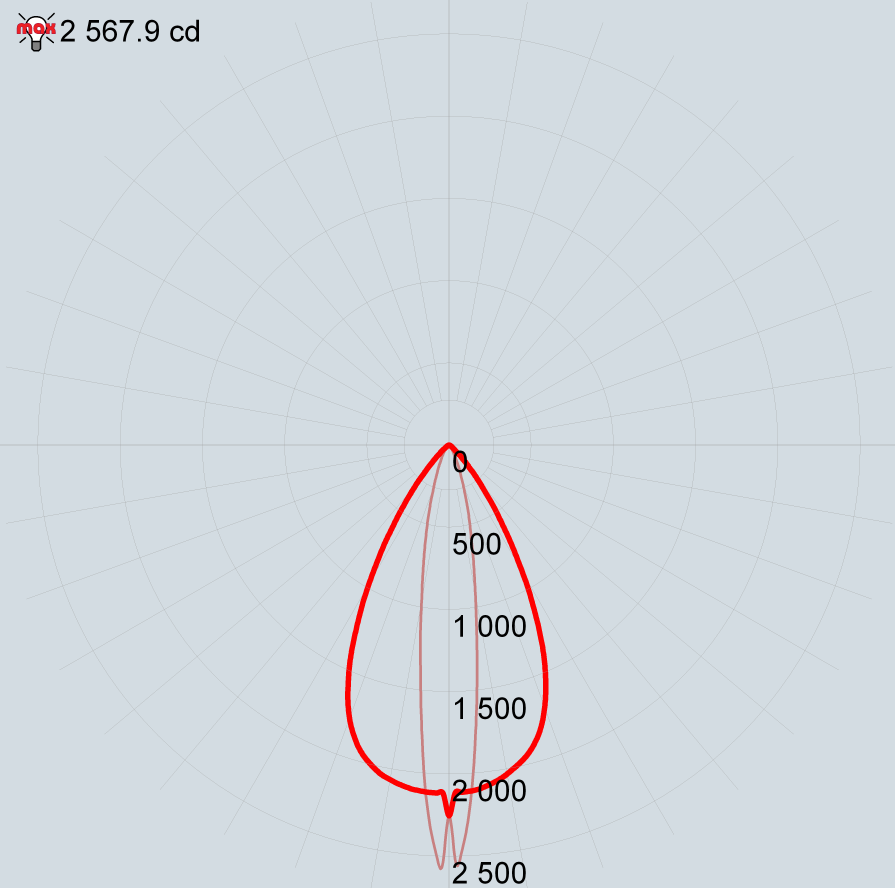

    Idensity(cd) 2584cd
    Beam Angle（FWHM °） 15x57°
    Beam Angle（FA°） 41x85°
    Rotation Angle（°） /
    MacAdam ≤5
    Material stainless steel+Aluminium
    Color/ Finishing Treatmen 316 stainless steel
    Dimension（L*W*Hmm） 1000*75*60mm
    Cutting Size（mm） 982*65*60mm
    Voltage DC24V
    Driver Internal
    Dimmable DMX
    Degree of protection（IP&IK) IP67、IK08
    Installation Recessed
    Certificate CE
    Maximum Temperature   -40℃～50℃
    Product Salt Spray Test Duration ＞1000h
    Life time in hours 50000h
    Accessory anti-glare louvre
    Comment Need to connect to DC24V power
