• Model NO. LDW44-36WP4
    Power Consumption 36W/m
    Lamp/Luminaire Bridgelux
    Color Temperature & Ra 3000K,Ra≥90
    LED LUMEN(lm) 3420lm（without louver）
    2332lm（with louver）

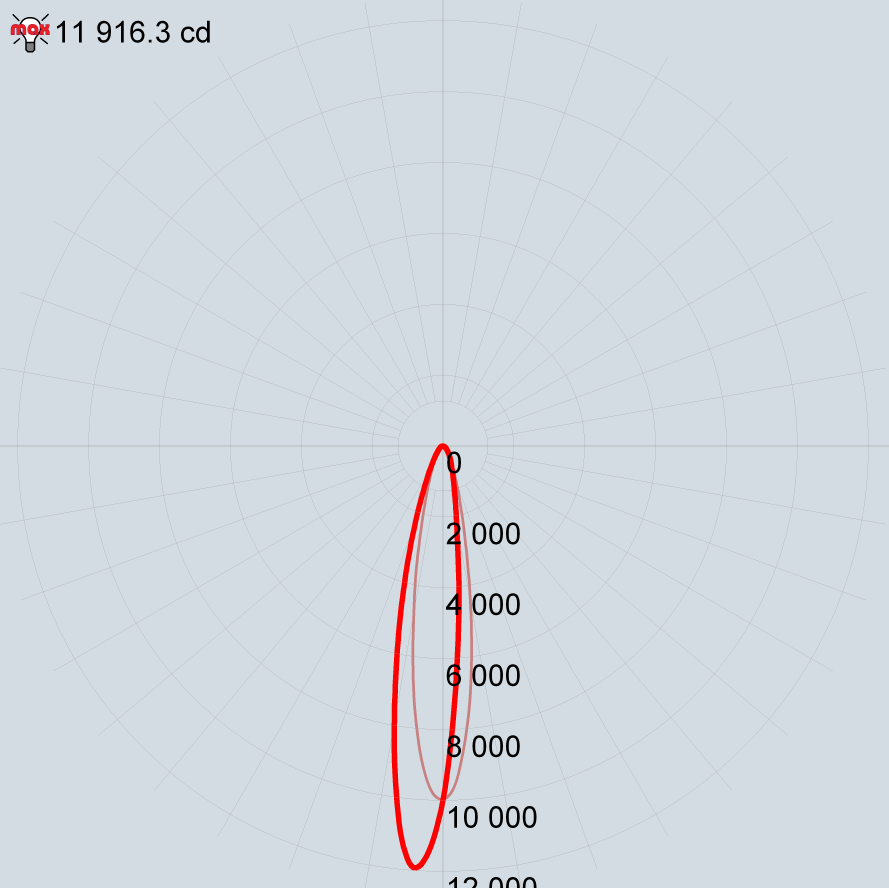

    Idensity(cd) 11923cd
    Beam Angle（FWHM °） 20x16°：P4
    Beam Angle（FA°） 54x42°：P4
    Rotation Angle（°） /
    MacAdam ≤5
    Material Aluminium
    Color/ Finishing Treatmen Matte gray
    Dimension（L*W*Hmm） 1000*39.5*33.5mm
    Cutting Size（mm） 1004*42.5*55mm
    Voltage DC24V
    Driver Internal
    Dimmable ONOFF/DALI/1-10v/DMX
    Degree of protection（IP&IK) IP67、IK08
    Installation Recessed
    Certificate CE
    Maximum Temperature   -40℃～50℃
    Product Salt Spray Test Duration ＞1000h
    Life time in hours 50000h
    Accessory /
    Comment Need to connect to DC24V power
