• Model NO. LDW44-45WA1022-P15-RGBW
    Power Consumption 45W/m
    Lamp/Luminaire Cree
    Color Temperature & Ra

    RGBW,Ra≥90
    LED LUMEN(lm) 2040lm（without louver）
    877lm（with louver）

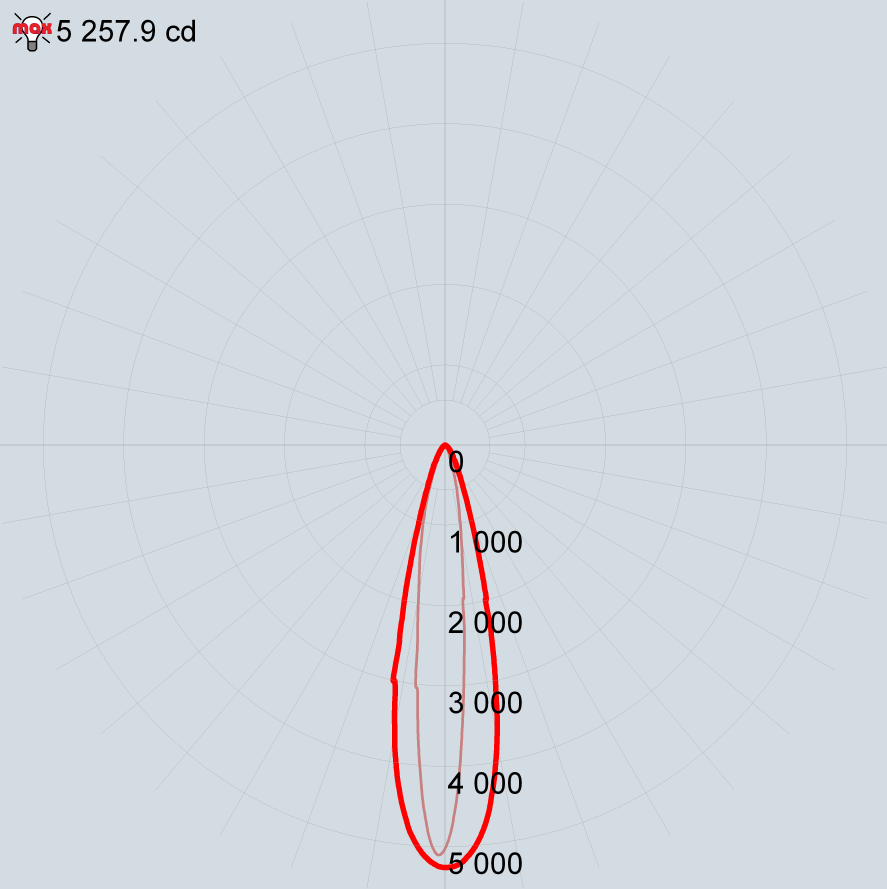

    Idensity(cd) 5295cd
    Beam Angle（FWHM °） 12x26°
    Beam Angle（FA°） 32x46°
    Rotation Angle（°） /
    MacAdam ≤5
    Material stainless steel+Aluminium
    Color/ Finishing Treatmen 316 stainless steel
    Dimension（L*W*Hmm） 1000*39.5*33.5mm
    Cutting Size（mm） 1004*42.5*55mm
    Voltage DC24V
    Driver Internal
    Dimmable DMX
    Degree of protection（IP&IK) IP67、IK08
    Installation Recessed
    Certificate CE
    Maximum Temperature   -40℃～50℃
    Product Salt Spray Test Duration ＞1000h
    Life time in hours 50000h
    Accessory anti-glare louvre
    Comment Need to connect to DC24V power
